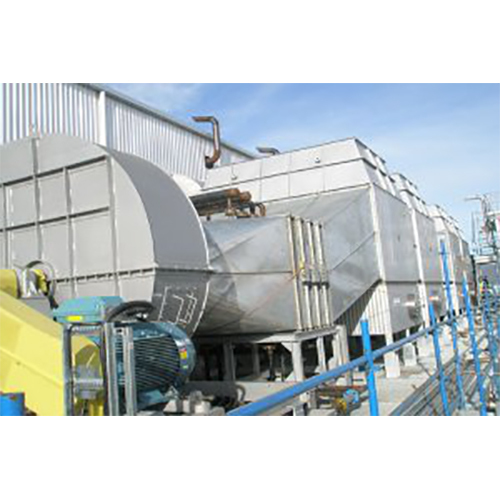

Waste Heat Recovery System

Calorie HNT design, manufacture, supply, install and commission heat / waste heat recovery system on turnkey basis. These type of systems are custom built and strictly as per individual customer or application or industry requirement. The recovered heat can be utilized in many application, which in turn is an energy saving.

Heat/waste heat recovery systems are custom built and strictly as per customer or application or industry requirement. The heat recovered is utilized in many applications. Which results  a considerable amount of energy saving.

A waste heat recovery unit is an energy recovery heat exchanger that recovers heat from hot streams with potential high energy content, such as hot flue gases from a diesel generator or steam from cooling towers or even waste water from different cooling processes such as in steel cooling.

Waste heat found in the exhaust gas of various processes or even from the exhaust stream of a conditioning unit can be used to preheat the incoming gas. This is one of the basic methods for recovery of waste heat. Many steel making plants use this process as an economic method to increase the production of the plant with lower fuel demand.


There are many different commercial recovery units for the transferring of energy from hot medium space to lower one.

• Recuperators: This name is given to different types of heat exchanger that the exhaust gases are passed through, consisting of metal tubes that carry the inlet gas and thus preheating the gas before entering the process. The heat wheel is an example which operates on the same principle as a solar air conditioning unit.
• Regenerators: This is an industrial unit that reuses the same stream after processing. In this type of heat recovery, the heat is regenerated and reused in the process.
• Heat pipe exchanger: Heat pipes are one of the best thermal conductors. They have the ability to transfer heat hundred times more than copper. Heat pipes are mainly known in renewable energy technology as being used in evacuated tube collectors. The heat pipe is mainly used in space, process or air heating, in waste heat from a process is being transferred to the surrounding due to its transfer mechanism.
• Thermal Wheel or rotary heat exchanger: consists of a circular honeycomb matrix of heat absorbing material, which is slowly rotated within the supply and exhaust air streams of an air handling system.
• Economizer: In case of process boilers, waste heat in the exhaust gas is passed along a recuperator that carries the inlet fluid for the boiler and thus decreases thermal energy intake of the inlet fluid.
• Heat pumps: Using an organic fluid that boils at a low temperature means that energy could be regenerated from waste fluids.
• Run around coil: comprises two or more multi-row finned tube coils connected to each other by a pumped pipework circuit.

Heat recovery systems are basically of two types, air-air heat exchange and air-water heat exchange. The multi-step heat recovery unit can fully utilize the energy after being best on the requirements of environment and process technology.

Air-Air heat recovery unit heats the air by using the remaining exhaust heat from hood so as to reach the purpose of recovering the heat energy. The heat recovery unit is in pipe-laid structure, which is easy to clean and lasts a long life. The pipe and the panel is connected by the expanded pipe or special rubber-alloy joint.

Air-Water heat recovery unit heats the process water or ventilating water by using the heat of exhaust air. It has direct and indirect heat exchanging types.
